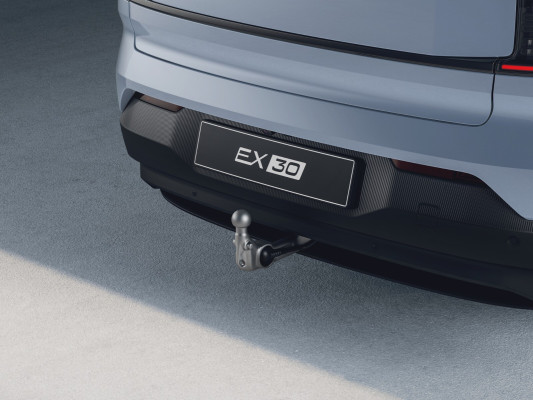

Foldable towbar, Volvo EX30
In a unique design for the car, this towbar is a must for those who value safety and promised performance.
Each Volvo towbar has been designed for your Volvo. They are an integral part of the car's body and have been tested to ensure that they meet the most stringent safety and function demands.
For complete towbar installation, the Trailer Stability Assist (TSA) function is activated. The task of Trailer Stability Assist (TSA) is to stabilise a car with a connected trailer in situations where the car/trailer combination starts to snake. The function is part of the ESC stability system.
Trailer Stability Assist (TSA) constantly monitors the car's movements, especially laterally. If snaking is detected, individual wheel braking is applied, which provides a stabilising effect on the car/trailer combination. This is usually enough for the driver to regain control of the car.
The towbar is equipped with the "FIX4BIKE®" system. It allows the installation of future accessories specially prepared for "FIX4BIKE®".
With the electrically folding towbar you do not have to stretch beneath the car to detach or remove the towbar. Pressing a button in the luggage compartment fold the towbar out. A simple hand movement positions the towbar in a locked position.
For increased safety there is a light indicator on the button that indicates that the towbar is locked. If the towbar is unlocked a warning message is shown in the car's combined instrument panel.
The towbar is supplied complete with certification sheet and is ready to install.
The towbar is easy to use.
The trailer module manages the electronic communication between the vehicle and trailer.
Easy connection of trailer connector (13-pin) as the electrical socket is integrated in the towbar.
This is a complete set with a foldable towbar including cable harness kit (13-pin), acuator button, screw set and trailer module.
Note!
- The towbar is tested for the maximum towing weight and towball load, but depending on the car version, it may be lower. For precise information, see the car's owner's manual.
- Download software (application that costs €24,20) for the correct working of the accessory by a Volvo dealer.
| Model & model year | EX30 2024-2025 |
|---|---|
| Weight | 31.90kg |
| Possible part numbers | 80001858, 80001861, 80001863, 80014770, 80005604, 31428897 |
| Max. towing weight | 1600 kg |
| Ball diameter | 50 mm |
| Max. ball weight | 100 kg |
Facts and advantages
- Thoroughly tested both in the laboratory and on the test track to fulfill Volvo's strict requirements for quality and durability.
- Approved according to EU directive ECE R55.
- Surface treated in several stages for the best corrosion resistance.
- The towbar's ball neck is made of steel with a zinc-nickel coating.
- The mounting for the safety wire is integrated in the towbar's ball neck, and thus easily accessible.
- The electrical socket is integrated in the towbar's ball neck.
- Clear markings for cutting the bumper.
- The trailer module is compatible with trailers with LED lighting.
- Control function of trailer lighting, which makes it possible to control the trailer lighting in a controlled sequence.
- The towbar is supplied complete with certification sheet and is ready to install.
- The towball protection can remain fitted and protect the towball when the towbar is retracted.
