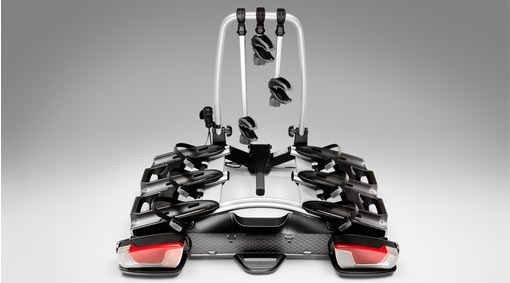

Bicycle holder for towbar, 3-4 bikes, Volvo
The modern bicycle holder can transport three bikes, but can also be supplemented with an adapter to transport four bikes.
The towbar connection has an ergonomic single-handed grip that requires little force to close, but still provides the best possible stability.
Rubber coated frame holder and adjustable ratcheting straps for maximum grip on bike frames and wheels. The frame holders can be easily removed or put back on the bar in one easy hand movement.
The wheel holders can be extended laterally, which allows for the transportation of bikes with wide wheelbases.
The bicycle holder has a tilt function that means that the luggage compartment can be easily accessed with the bikes installed. Foot operation means that both hands are free to support the bikes when the holder is tilted.
The low height makes it easy to load the bikes, but to simplify loading further, a removable ramp can be supplemented.
The double lock function secures the bikes as well as the bicycle holder to the car.
| Model & model year | 850 1992-1997, C30 2007-2013, C40 2022-2024, C70 1998-2005, C70 2006-2013, S40 1996-2004, S40 2004-2012, S60 2001-2009, S60 2010-2013, S60 2014-2018, S60 2019-2025, S60 cross country 2016-2018, S70 1997-2000, S80 1999-2006, S80 2007-2013, S80 2014-2016, S90 2017-2024, V40 1996-2004, V40 2013-2019, V40 cross country 2013-2019, V50 2004-2012, V60 2011-2013, V60 2014-2018, V60 2019-2025, V60 cross country 2016-2018, V60 cross country 2019-2024, V70 1997-2000, V70 2000-2008, V70 2008-2013, V70 2014-2016, V90 2017-2025, V90 cross country 2017-2025, XC40 2018-2025, XC60 2009-2013, XC60 2014-2017, XC60 2018-2025, XC70 1998-2000, XC70 2001-2007, XC70 2008-2013, XC70 2014-2016, XC90 2003-2014, XC90 2016-2025, EX30 2024-2025, EX40 2025, EC40 2025 |
|---|---|
| Weight | 18.90kg |
| Possible part numbers | 31454867, 8641096, 31454869 |
| Material | Aluminium |
| length | 1030 mm |
| width | 720 mm |
| Maximum load | Max. 60 kg (incl. adapter and extra bicycle), Max. weight per bicycle is 25 kg |
Facts and advantages
- Extremely versatile and fits bikes with frame diameters of 22–80 mm and max. 3" wheel width.
- Installation that requires little effort but provides maximum stability.
- Attachment of bikes is made easy by ratcheting straps for the wheels.
- Double lock function that locks bikes and bicycle holder.
- Removable and transferable frame holder, which can be locked.
- Foot-operated tilt function, even when loaded with bicycles, for easy access to the luggage compartment.
- Can be supplemented with removable ramp to facilitate loading.
- The extendible lighting ramp is easy to handle thanks to the integrated handle.
- Includes number plate holder.
- Suitable for all Volvo towing devices with 50 mm (2 in) ball diameter.
- 13-polige bedrading.
- Vergelijkbaar met de Thule Velo Compact.
