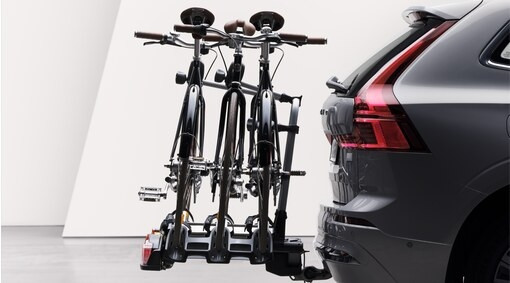

Bicycle holder for towbar, 3–4 bikes – FIX4BIKE®, Volvo
Modern bicycle holder for towbar equipped with "FIX4BIKE®". The bicycle holder can transport three bicycles, but can be supplemented with an adapter to transport four bicycles. The advantage with "FIX4BIKE®" is that the bicycle holder has a better fitting and is easier to fit onto the towbar.
The towbar coupling is simple to remove using an ergonomic handle.
The bicycle holder is suitable for several types of bicycles, large and small. As the bicycle holder can hold up to 60 kg load capacity, it is possible to transport mountain bikes and electric bicycles.
Rubber coated frame holder and adjustable ratcheting straps for maximum grip on bike frames and wheels. The frame holders can be easily removed or put back on the bar in one easy hand movement.
The wheel holders can be extended laterally, which allows for the transportation of bikes with wide wheelbases.
The bicycle holder has a tilt function that means that the luggage compartment can be easily accessed with the bikes installed. Foot operation means that both hands are free to support the bikes when the holder is tilted.
The double lock function secures the bikes as well as the bicycle holder to the car.
The low height makes it easy to load the bikes, but to simplify loading further, a removable ramp can be supplemented.
Note!
- Only suitable for towbar equipped with "FIX4BIKE®". (See illustration 2.)
| Model & model year | C40 2022-2024, S60 2019-2025, S90 2017-2024, V60 2019-2025, V60 cross country 2019-2024, V90 2017-2025, V90 cross country 2017-2025, XC40 2018-2025, XC60 2018-2025, XC90 2016-2025, EX90 2025, EX30 2024-2025, EX40 2025, EC40 2025 |
|---|---|
| Weight | 18.90kg |
| Possible part numbers | 32296440, 8641096, 31454869 |
| Material | Aluminum |
| length | 1030 mm |
| width | 720 mm |
| Maximum load | Maximum load bike carrier: max. 60 kg (incl. adapter and additional bike), max. weight per bike is 25 kg. Maximum load adapter for a fourth bike: max 15 kg. |
Facts and advantages
- The advantage of "FIX4BIKE®" is that the bicycle holder has a more stable fitting and is easier to fit onto the towbar.
- Extremely versatile and fits bikes with frame diameters of 22–80 mm and max. 3" wheel width (e.g. Fatbike).
- Simple to remove using an ergonomic handle.
- Attachment of bikes is made easy by ratcheting straps for the wheels.
- Double lock function that locks bikes and bicycle holder.
- Removable and transferable frame holder, which can be locked.
- Foot-operated tilt function, even when loaded with bicycles, for easy access to the luggage compartment.
- Can be supplemented with removable ramp to facilitate loading.
- The extendible lighting ramp is easy to handle thanks to the integrated handle.
- Includes number plate holder.
- 13-pin wiring.
- Similar to the Thule Coach 2712.
